15. Next, I take Balfour's 'Structural Botany,' and by his index, under the word 'Pith,' am referred to his articles 8, 72, and 75. In article 8, neither the word pith, nor any expression alluding to it, occurs.

In article 72, the stem of an outlaid tree is defined as consisting of 'pith, fibro-vascular and 42 woody tissue, medullary rays, bark, and epidermis.'

A more detailed statement follows, illustrated by a figure surrounded by twenty-three letters—namely, two b s, three c s, four e s, three f s, one l, four m s, three p s, one r, and two v s.

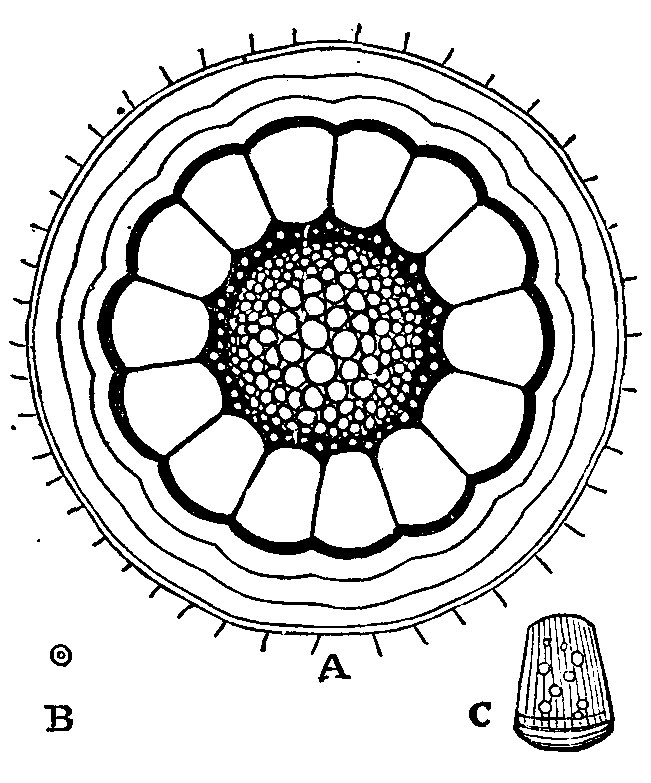

Eighteen or twenty minute sputters of dots may, with a good lens, be discerned to proceed from this alphabet, and to stop at various points, or lose themselves in the texture, of the represented wood. And, knowing now something of the matter beforehand, guessing a little more, and gleaning the rest with my finest glass, I achieve the elucidation of the figure, to the following extent, explicable without letters at all, by my more simple drawing, Figure 25.

16. (1) The inner circle full of little cells, diminishing in size towards the outside, represents the pith, 'very large at this period of the growth'—(the first year, we are told in next page,) and 'very large'—he means in proportion to the rest of the branch. How large he does not say, in his text, but states, in his note, that the figure is magnified 26 diameters. I have drawn mine by the more convenient multiplier of 30, and given the real size at B, according to Balfour:—but without believing him to be right. I never saw a maple stem of the first year so small.

FIG. 25.

(2) The black band with white dots round the marrow, represents the marrow-sheath.

(3) From the marrow-sheath run the marrow-rays 'dividing the vascular circle into numerous compact segments.' A 'ray' cannot divide anything into a segment. Only a partition, or a knife, can do that. But we shall find presently that marrow rays ought to be called marrow-plates, and are really mural, forming more or less continuous partitions.

(4) The compact segments 'consist of woody vessels and of porous vessels.' This is the first we have heard of woody vessels! He means the 'fibres ligneux' of Figuier; and represents them in each compartment, as at C (Fig. 25). without telling us why he draws the woody vessels as radiating. They appear to radiate, indeed, when wood is sawn across, but they are really upright.

(5) A moist layer of greenish cellular tissue called the cambium layer—black in Figure 25—and he draws it in flat arches, without saying why.

(6), (7), (8) Three layers of bark (called in his note Endophlœum; Mesophlœum, and Epiphlœum!) with 'laticiferous vessels.' 43

(9) Epidermis. The three layers of bark being separated by single lines, I indicate the epidermis by a double one, with a rough fringe outside, and thus we have the parts of the section clearly visible and distinct for discussion, so far as this first figure goes,—without wanting one letter of all his three and twenty!

17. But on the next page, this ingenious author gives us a new figure, which professes to represent the same order of things in a longitudinal section; and in retracing that order sideways, instead of looking down, he not only introduces new terms, but misses one of his old layers in doing so,—thus:

His order, in explaining Figure 96, contains, as above, nine members of the tree stem.

But his order, in explaining Figure 97, contains only eight, thus:

(1) The pith. (2) Medullary sheath. Circles.

(3) Medullary ray = a Radius.

(4) Vascular zone, with woody fibres (not now vessels!) The fibres are composed of spiral, annular, pitted, and other vessels.

(5) Inner bark or 'liber,' with layer of cambium cells.

(6) Second layer of bark, or 'cellular envelope,' with laticiferous vessels.

(7) Outer or tuberous layer of bark.

(8) Epidermis.

Doing the best I can to get at the muddle-headed gentleman's meaning, it appears, by the lettering of his Figure 97, my 25 above, that the 'liber,' number 5, contains the cambium layer in the middle of it. The part of the liber between the cambium and the wood is not marked in Figure 96;—but the cambium is number 5, and the liber outside of it is number 6,—the Endophlœum of his note.

FIG. 26.

Having got himself into this piece of lovely confusion, he proceeds to give a figure of the wood in the second year, which I think he has borrowed, without acknowledgment, from Figuier, omitting a piece of Figuier's woodcut which is unexplained in Figuier's text. I will spare my readers the work I have had to do, in order to get the statements on either side clarified: but I think they will find, if they care to work through the wilderness of the two authors' wits, that this which follows is the sum of what they have effectively to tell us; with the collated list of the main questions they leave unanswered—and, worse, unasked.

18. An ordinary tree branch, in transverse section, consists essentially of three parts only,—the Pith, Wood, and Bark.

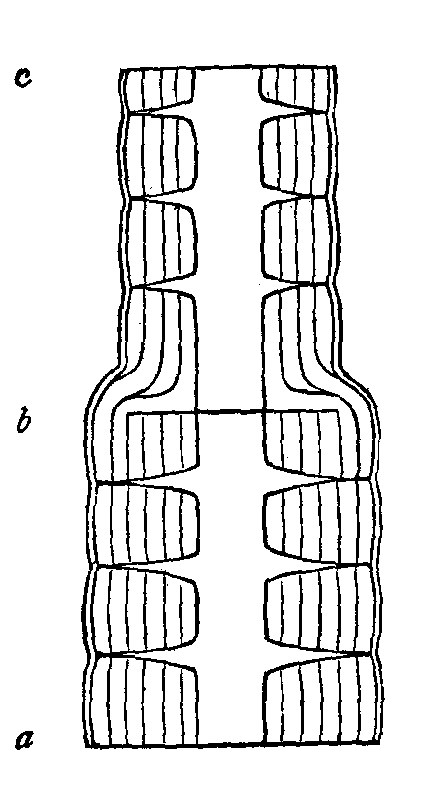

The pith is in full animation during the first year—that is to say, during the actual shooting of the wood. We are left to infer that in the second year, the pith of the then unprogressive shoot becomes collective only, not formative; and that the pith of the new shoot virtually energizes the new wood in its deposition beside the old one. Thus, let a b, Figure 26, be a shoot of the first year, and b c of the second. The pith remains of the same thickness in both, but that of the new shoot is, I suppose, chiefly active in sending down the new wood to thicken the old one, which is collected, however, and fastened by the extending pith-rays below. You see, I have given each shoot four fibres of wood for its own; then the four fibres of the upper one send out two to thicken the lower: the pith-rays, represented by the white transverse claws, catch and gather all together. Mind, I certify nothing of this to you; but if this do not happen,—let the botanists tell you what does.

19. Secondly. The wood, represented by these four lines, is to be always remembered as consisting of fibres and vessels; therefore it is called 'vascular,' a word which you may as well remember (though rarely needed in familiar English), with its roots, vas, a vase, and vasculum, a little vase or phial. 'Vascule' may sometimes be allowed in botanical descriptions where 'cell' is not clear enough; thus, at present, we find our botanists calling the pith 'cellular' but the wood 'vascular,' with, I think, the implied meaning that a 'vascule,' little or large, is a long thing, and has some liquid in it, while a 'cell' is a more or less round thing, and to be supposed empty, unless described as full. But what liquid fills the vascules of the wood, they do not tell us.44 I assume that they absorb water, as long as the tree lives.

FIG. 27.

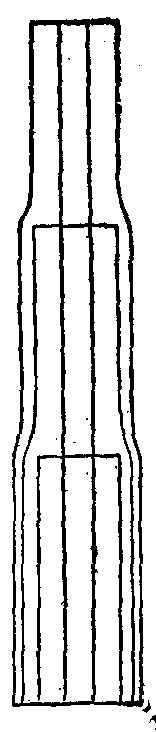

20. Wood, whether vascular or fibrous, is however formed, in outlaid plants, first outside of the pith, and then, in shoots of the second year, outside of the wood of the first, and in the third year, outside of the wood of the second; so that supposing the quantity of wood sent down from the growing shoot distributed on a flat plane, the structure in the third year would be as in Figure 27. But since the new wood is distributed all round the stem, (in successive cords or threads, if not at once), the increase of substance after a year or two would be untraceable, unless more shoots than one were formed at the extremity of the branch. Of actual bud and branch structure, I gave introductory account long since in the fifth volume of 'Modern Painters.'45 to which I would now refer the reader; but both then, and to-day, after twenty years' further time allowed me, I am unable to give the least explanation of the mode in which the wood is really added to the interior stem. I cannot find, even, whether this is mainly done in springtime, or in the summer and autumn, when the young suckers form on the wood; but my impression is that though all the several substances are added annually, a little more pith going to the edges of the pith-plates, and a little more bark to the bark, with a great deal more wood to the wood,—there is a different or at least successive period for each deposit, the carrying all these elements to their places involving a fineness of basket work or web work in the vessels, which neither microscope nor dissecting tool can disentangle. The result on the whole, however, is practically that we have, outside the wood, always a mysterious 'cambium layer,' and then some distinctions in the bark itself, of which we must take separate notice.

21. Of Cambium, Dr. Gray's 220th article gives the following account. "It is not a distinct substance, but a layer of delicate new cells full of sap. The inner portion of the cambium layer is, therefore, nascent wood, and the outer nascent bark. As the cells of this layer multiply, the greater number lengthen vertically into prosenchyma, or woody tissue, while some are transformed into ducts" (wood vessels?) "and others remaining as parenchyma, continue the medullary rays, or commence new ones." Nothing is said here of the part of the cambium which becomes bark: but at page 128, the thin walled cells of the bark are said to be those of ordinary 'parenchyma,' and in the next page a very important passage occurs, which must have a paragraph to itself. I close the present one with one more protest against the entirely absurd terms 'par-enchyma,' for common cellular tissue, 'pros-enchyma,' for cellular tissue with longer cells;—'cambium' for an early state of both, and 'diachyma' for a peculiar position of one!46 while the chemistry of all these substances is wholly neglected, and we have no idea given us of any difference in pith, wood, and bark, than that they are made of short or long—young or old—cells!

22. But in Dr. Gray's 230th article comes this passage of real value. (Italics mine—all.) "While the newer layers of the wood abound in crude sap, which they convey to the leaves, those of the inner bark abound in elaborated sap, which they receive from the leaves, and convey to the cambium layer, or zone of growth. The proper juices and peculiar products of plants are accordingly found in the foliage and bark, especially the latter. In the bark, therefore, either of the stem or root, medicinal and other principles are usually to be sought, rather than in the wood. Nevertheless, as the wood is kept in connection with the bark by the medullary rays, many products which probably originate in the former are deposited in the wood."

23. Now, at last, I see my way to useful summary of the whole, which I had better give in a separate chapter: and will try in future to do the preliminary work of elaboration of the sap from my authorities, above shown, in its process, to the reader, without making so much fuss about it. But, I think in this case, it was desirable that the floods of pros-, par-, peri-, dia-, and circumlocution, through which one has to wade towards any emergent crag of fact in modern scientific books, should for once be seen in the wasteful tide of them; that so I might finally pray the younger students who feel, or remember, their disastrous sway, to cure themselves for ever of the fatal habit of imagining that they know more of anything after naming it unintelligibly, and thinking about it impudently, than they did by loving sight of its nameless being, and in wise confession of its boundless mystery.

In re-reading the text of this number I can secure my young readers of some things left doubtful, as, for instance, in their acceptance of the word 'Monacha,' for the flower described in the sixth chapter. I have used it now habitually too long to part with it myself, and I think it will be found serviceable and pleasurable by others. Neither shall I now change the position of the Draconidae, as suggested at p. 118, but keep all as first planned. See among other reasons for doing so the letter quoted in p. 121.

I also add to the plate originally prepared for this number, one showing the effect of Veronica officinalis in decoration of foreground, merely by its green leaves; see the paragraphs 1 and 5 of Chapter VI. I have not represented the fine serration of the leaves, as they are quite invisible from standing height: the book should be laid on the floor and looked down on, without stooping, to see the effect intended. And so I gladly close this long-lagging number, hoping never to write such a tiresome chapter as this again, or to make so long a pause between any readable one and its sequence.
