Stories of Useful Inventions

THE PLOW

You have now learned the history of those inventions which enabled man to gain a mastery over fire and to use it for his comfort and convenience. We shall next learn the history of an invention which gave man the mastery of the soil and enabled him to take from the earth priceless treasures of fruit and grain. This invention was the plow.

In his earliest state man had no use for the plow because he did not look to the soil as a place from which he was to get his food. The first men were hunters and they relied upon the chase for their food. They roamed from place to place in pursuit of their prey – the birds and beasts of the forest and the fishes of the stream. They did not remain long enough in one spot to sow seed and to reap the harvest. Still in their wanderings they found wheat and barley growing wild and they ate of the seeds of these plants and learned that the little grains were good for food. They learned, too, that if the seeds were planted in a soil that was well stirred the plants would grow better than they would if the seeds were planted in hard ground. So by the time men had grown tired of wandering about and were ready to settle down and live in one spot they had learned two important facts: they knew they could add to their food supply by tilling the soil, and they knew that they could grow better crops if they would stir the soil before planting the seed.

FIG. 1. – THE KATTA OR DIGGING STICK.

For the stirring of the soil the primitive farmer doubtless first used a sharpened stick such as wandering tribes carry for the purpose of digging up eatable roots, knocking fruits down from trees, and breaking the heads of enemies. Such a stick known as the Katta (Fig. 1) is carried by certain tribes in Australia, and we are told by travelers that the Kurubars of Southern India use a sharp stick when digging up the ground. The digging stick is used by savages in many parts of the world and we may regard it as the oldest of implements used for tilling the soil.

FIG. 2. – THE FIRST PLOW.

The first plow was a forked stick or a limb of a tree with a projecting point (Fig. 2). With this implement the ground was broken not by digging but by dragging the fork or projecting point of the stick through the ground and forming a continuous furrow. In this forked stick we see two of the principal parts of the modern plow. The fork of the stick is the share, or cutting part of the plow, while the main part of the stick is the beam.

FIG. 3. – THE SYRIAN PLOW KNOWN AS JOB'S PLOW.

An improvement upon the simple forked stick is seen in Figure 3, which is copied from an ancient monument in Syria (in Asia Minor). The old Syrian plow consists almost wholly of the natural crooks of a branch of a tree, the only artificial piece being the brace e which connects the share and the beam and holds them firm. In this crooked stick we have three of the main parts of the modern plow, the beam (a), the share (c-b) and the handle (d). The plow in this form requires the services of two persons – one to draw the plow and one to guide it and keep it in the ground. It is said that it was with a plow of this kind that the servants of Job were plowing when they were driven from their fields by the Sabeans.

FIG. 4. – PLOW DRAWN BY HUMAN LABOR.

FIG. 5. – THE EGYPTIAN PLOW.

The first plows were drawn by the strength of the human body (Fig. 4). Upon a very old monument of ancient Egypt, the country which seems to have been the first home of the plow, we have a plowing scene which shows a number of men dragging a plow by means of a rope. But primitive man was not at all fond of labor and in the course of time he tamed wild bulls and horses and made them draw the plows. So upon another Egyptian monument of a later date we have a picture of a plowing scene in which animals are drawing the plow (Fig. 5). In this Egyptian plow we see improvements upon the crooked stick of the Syrians. The Egyptian plow, you observe, has a broader share. It will, therefore, make a wider furrow and will plow more ground. Moreover, it has two handles instead of one. Taking it altogether, the Egyptian plow was a fairly good implement.

FIG. 6. – PLINY'S PLOW, 70 A. D.

FIG. 7. – AN OLD SAXON PLOW, 1000 A. D.

Many centuries passed before any real improvement was made upon the old Egyptian plow. If there were any improvement anywhere it was among the Romans. We read in Pliny – a Roman writer of the first century – of a plow that had wheels to regulate the depth of the plow and also a coulter, that is, a knife fixed in front of the share to make the first cut of the sod (Fig. 6). But such a plow was not in general use in Pliny's time. A thousand years later, however, the plow with wheels and coulter was doubtless in common use. In a picture taken from an old Saxon print we see (Fig. 7) a plow which was used in the time of William the Conqueror (1066). Here the plow has a coulter inserted in the beam and there are two wheels to regulate the depth to which the plow may go. This Saxon plow is drawn by four fine oxen and it is plainly a great improvement upon the old Egyptian plow.

But improvements in the plow during the dark ages came very slowly. At the time of the discovery of America the plow was still the clumsy wooden thing it was five hundred years before. In the sixteenth and seventeenth centuries, however, when improvements were being made in so many things, it was natural that men should begin to think of trying to improve the plow. In an old book published in 1652 we read of a double plow – one which would plow two furrows at one time. A picture (Fig. 8) of the double plow is given in the book but there is no proof that such a plow was ever made or ever used. The world did not as yet need a double plow, although the time was to come when it would need one.

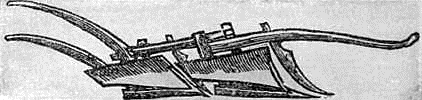

FIG. 8. – A DOUBLE PLOW OF THE SEVENTEENTH CENTURY.

(This plow was proposed but was never made.)

In the early part of the eighteenth century we begin to see real improvements in plow making. About this time Dutch plowmakers began to put mold-boards on their plows. The purpose of the mold-board is to lift up and turn over the slice of sod cut by the share. Without the mold-board the plow simply runs through the ground and stirs it up. With the mold-board of the Dutch plow (Fig. 9) the sod was turned completely over and the weeds and grass were covered up. This was the kind of plow that was needed, for if the weeds and grass are not covered up the best effects of plowing are lost. So the mold-board was a great improvement and its invention marks a great event in the history of the plow.

FIG. 9. – THE DUTCH PLOW SHOWING THE MOLD-BOARD.

FIG. 10. – A COLONIAL PLOW.

The Dutch plow was taken as a model for English plows and, in fact, for the plows of all nations. The mold-board grew rapidly into favor and by the end of the eighteenth century it was found on plows in all civilized nations. But the plow was still made mostly of wood (Fig. 10) and it was still an awkward and a poorly constructed affair. The method of making plows about the year 1800 has been described as follows: "A mold-board was hewed from a tree with the grain of the timber running as nearly along its shape as it could well be obtained. On to this mold-board, to prevent its wearing out too rapidly, were nailed the blade of an old hoe, thin strips of iron, or worn out horseshoes (Fig. 10). The land side was of wood, its base and sides shod with thin plates of iron. The share was of iron with a hardened steel point. The coulter was tolerably well made of iron. The beam was usually a straight stick. The handles, like the mold-board, were split from the crooked trunk of a tree or as often cut from its branches. The beam was set at any pitch that fancy might dictate, with the handles fastened on almost at right angles with it, thus leaving the plowman little control over his implement, which did its work in a very slow and most imperfect manner."

But about the end of the eighteenth century the world was beginning to need a plow that would do its work rapidly and well. Population was everywhere increasing and it was necessary to till more ground than had ever been tilled in former times. Especially was a good plow needed in the United States where there were vast areas of new ground to be broken. And it was in the United States that the first great improvements in the plow were made. Foremost among those who helped to make the plow a better implement was the statesman, Thomas Jefferson. This great man while traveling in France in 1788 was struck by the clumsiness of the plows used in that country. In his diary he wrote: "The awkward figure of their mold-board leads one to consider what should be its form." So Jefferson turned his attention to mold-boards. He saw that the mold-board ought to be so shaped that it would move through the ground and turn the sod with the least possible resistance and he planned for a mold-board of this kind. By 1793 he had determined what the proper form of a mold-board should be and had in actual use on his estate in Virginia several plows which had mold-boards of least resistance. Mr. Jefferson's patterns of the mold-board have, of course, been improved upon, but he has the honor of having invented the first mold-board that was constructed according to scientific and mathematical principles.12

FIG. 11. – DANIEL WEBSTER'S PLOW.

About the time Jefferson was working upon the mold-board, Charles Newbold, a farmer of Burlington, New Jersey, was also doing great things for the improvement of the plow. We have seen that the plow of this time was a patch work of wood and iron. Newbold thought the plow ought to be made wholly of iron and about 1796 he made one of cast iron, the point, share, and mold-board all being cast in one piece. But the New Jersey farmers did not take kindly to the iron plow. They said that iron poisoned the crops and caused weeds to grow faster than ever. So Newbold could not sell his plows and he was compelled to give up the business in despair.

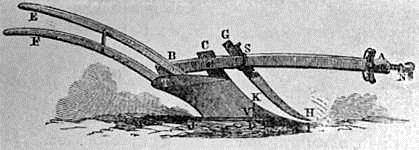

FIG. 12. – JETHRO WOOD'S PLOW, 1819.

But soon the iron plow was to have its day. In 1819 Jethro Wood of Scipio, New York, took out a patent for a plow which was made of cast iron and which combined the best features of the plow as planned by Jefferson and by Newbold. In Wood's plow (Fig. 12) the several parts – the point, share and mold-board – were so fastened together that when one piece wore out it could easily be replaced by a new piece. In Newbold's plow when one part wore out the whole plow was rendered useless. Wood's plow became very popular and by 1825 it was rapidly driving out the half-wooden, half-iron plows of the olden time. Great improvements of course have been made upon the plow since 1819, but in the main features the best plows of to-day closely resemble the implement invented by Jethro Wood. Since our greatness as a nation is due largely to the plow all honor should be given to the memory of this inventor. "No citizen of the United States," said William H. Seward, "has conferred greater benefits on his country than Jethro Wood."

FIG. 13. – THE GANG PLOW DRAWN BY HORSES.

FIG. 14. – PLOWING BY STEAM.

The plow is drawn across the field by means of cables. Sometimes a traction engine moves along with the plow.

But the plow of Jethro Wood, as excellent as it was, did not fully meet the needs of the western farmer. The sod of the vast prairies could not be broken fast enough with a plow of a single share. So about the middle of the nineteenth century the gang plow, a hint for which had been given long before (p. 78) was invented, and as this new plow moved along three or four or five furrows were turned at once. At first the gang plow was drawn by horses (Fig. 13) but later it was drawn by steam (Fig. 14).

The great gang plow drawn by steam marked the last step in the development of the plow. The forked stick drawn by human hands and making its feeble scratch on the ground had grown until it had become a mighty machine drawn across the field by an unseen force and leaving in its wake a broad belt of deeply-plowed and well-broken soil.

THE REAPER

After man had invented his rude plow and had learned how to till the soil and raise the grain, it became necessary for him to learn how to harvest his crop, how to gather the growing grain from the fields. The invention of the plow, therefore, must have soon been followed by the invention of the reaper.

FIG. 1. – PRIMITIVE SICKLES.

FIG. 2. – REAPING WITH THE SICKLE.

The first grain was doubtless cut with the rude straight knives used by primitive man. In time it was found that if the knife were bent it would cut the grain better. So the first form of the reaper was a curved or bent knife known as the sickle or reaping hook (Fig. 1). The knife was fastened at one end to a stick which served as a handle. When using the sickle the harvester held the grain in one hand and cut it with the other. (Fig. 2).

When the sickle first began to be used is of course unknown. Among the remains of the "stone age" (p. 39) are implements of flint which resemble the sickle, while among the remains of the so-called "bronze age" many primitive sickles made of bronze have been found. Nor do we know where the sickle was first used, although Egypt seems to have been the first home of the sickle just as it was the first home of the plow. Upon the wall of a building of ancient Thebes is a picture of an Egyptian harvest scene. Two men with sickles are cutting the wheat. A man following the reapers seems to be gleaning, that is, picking up the wheat that the reapers have cut. Other harvesters are carrying the grain to the threshing place where it is tramped out by the slow feet of oxen. A primitive sickle such as was used by the Egyptians was used by all civilized nations in ancient times, by the Hebrews, by the Greeks, and by the Romans.

FIG. 3. – AN EARLY SCYTHE.

The first improvement upon the primitive sickle was made by the Romans. About the year 100 A. D. the Roman farmers, who were at the time the best farmers in the world, began to use a kind of scythe for cutting grass. The Roman scythe was simply an improved form of the sickle; it was a broad, heavy blade fastened on a long straight handle, resembling the pruning hook of to-day (Fig. 3). The scythe was swung with both hands and it was used chiefly for cutting grass.

FIG. 4. – THE HAINAULT OR FLEMISH SCYTHE, WITH HOOK.

For more than a thousand years after the appearance of the Roman scythe agriculture in Europe was everywhere neglected and little or no improvement was made in farming implements. About the end of the Middle Ages, however, improvements in the form of the scythe began to appear. In Flanders farmers began to use an implement known as the Hainault scythe (Fig. 4). This scythe had a fine broad blade and a curved handle. When reaping with this scythe the reaper with his left hand brought the stalks of grain together with a hook and with his right hand he swung the scythe and cut the grain. This scythe was an improvement upon the sickle but it was still a very awkward implement.

FIG. 5. – EARLY FORM OF THE CRADLE SCYTHE.

The Hainault or Flemish scythe was followed by the cradle scythe. On this scythe (Fig. 5) there were wooden fingers running parallel to the blade. These fingers, called the cradle, caught the grain as it was cut and helped to leave it in a bunch. In the early cradle-scythe the fingers were few in number and they ran along the blade for only a part of its length, but in America during the colonial period the cradle was improved by lengthening the fingers and increasing their number. At the time of the Revolution the improved American cradle was coming into use and by the end of the eighteenth century it was driving out the sickle.

FIG. 6. – THE IMPROVED CRADLE SCYTHE.
